Model:                        FNV

Capacity:                    5~200kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

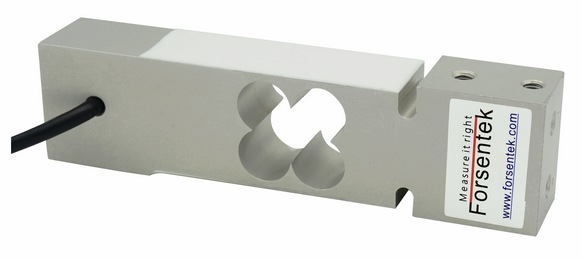

Weighing cell FNV is made of aluminum,strain gauge based,6-wire connection,high accuracy, corner trimmed for maximum 400*400 platform,low off-center error,widely used for bench scales,weighing scales,packing machines,etc.
