Load sensor weighing cell weight measurement

load sensor weighing cell.JPG
down load

down load

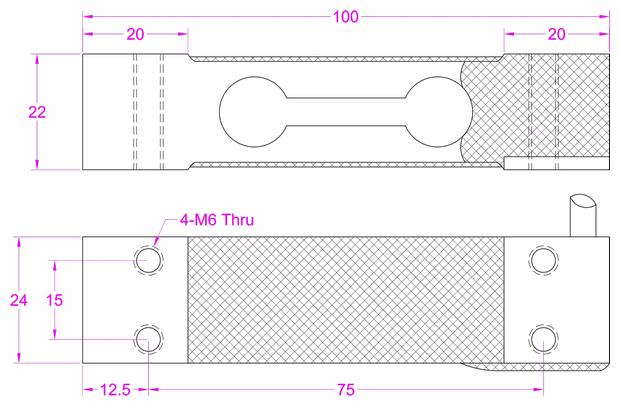

load cell sensor FNG

Model:                        FNG

Capacity:                    3~40kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service


Load cell sensor FNG is strain gauge based transducer,low profile,small size,single point structure,easy to install.High accuracy,competitive price.Off-certer compenstated for maximum 250*350mm platform. Widely used for counting scales and weighing instruments.
