loadcell sensor FNK

Model:                        FNK

Capacity:                    3/5/10/15/20kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

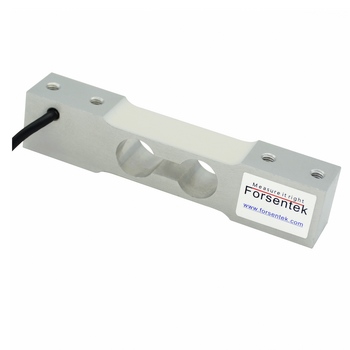

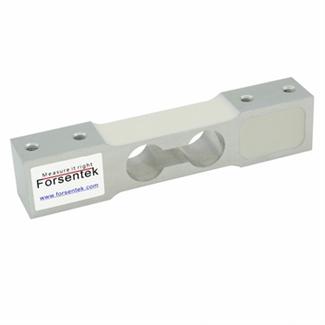

Strain gauge sensor FNK is made of aluminum alloy, small size, single point structure, easy to install. Off-center load compensated for 200*200mm platform. Widely used for bench scales, counting scales and other weighing devices.
