Strain gauge transducer loadcell sensor

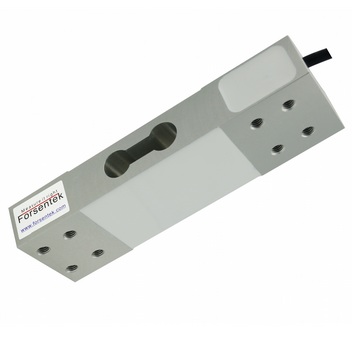

strain gauge transducer load cells for scales.jpg
down load

down load

strain gauge load cell FNP

Model:                        FNP

Capacity:                    60/100/150/200/300/500kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:       0.01% of R.O.

Excitation:                  5~15V

Other:                        Custom-design service


Strain gauge sensor FNP is corner trimmed for 600*600mm platform size,low off-center error.Parallel beam structure,low profile,easy to install.Widely used for platform scales,livestock scales and other high accuracy weighing applications.
