Weighing load cell weight sensor

weighing load cell load cell 100kg.JPG
down load

down load

strain gauge load cell FNM

Model:                        FNM

Capacity:                    15kg~200kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

loadcell load cells

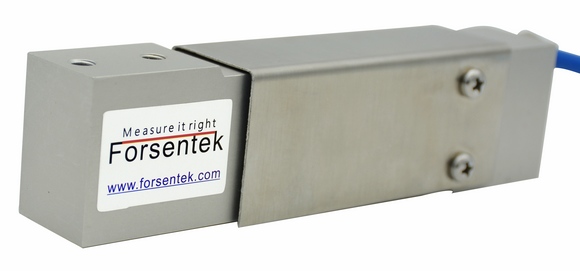

Weighing load cell FNM is a strain gauge based weight sensor,aluminum construction,cover plate design to protect the bonding area.six-wire connection,high accuracy,corner trimmed for maximum 400*400mm platform. Widely used for bench scales and industrial weighing applications.
